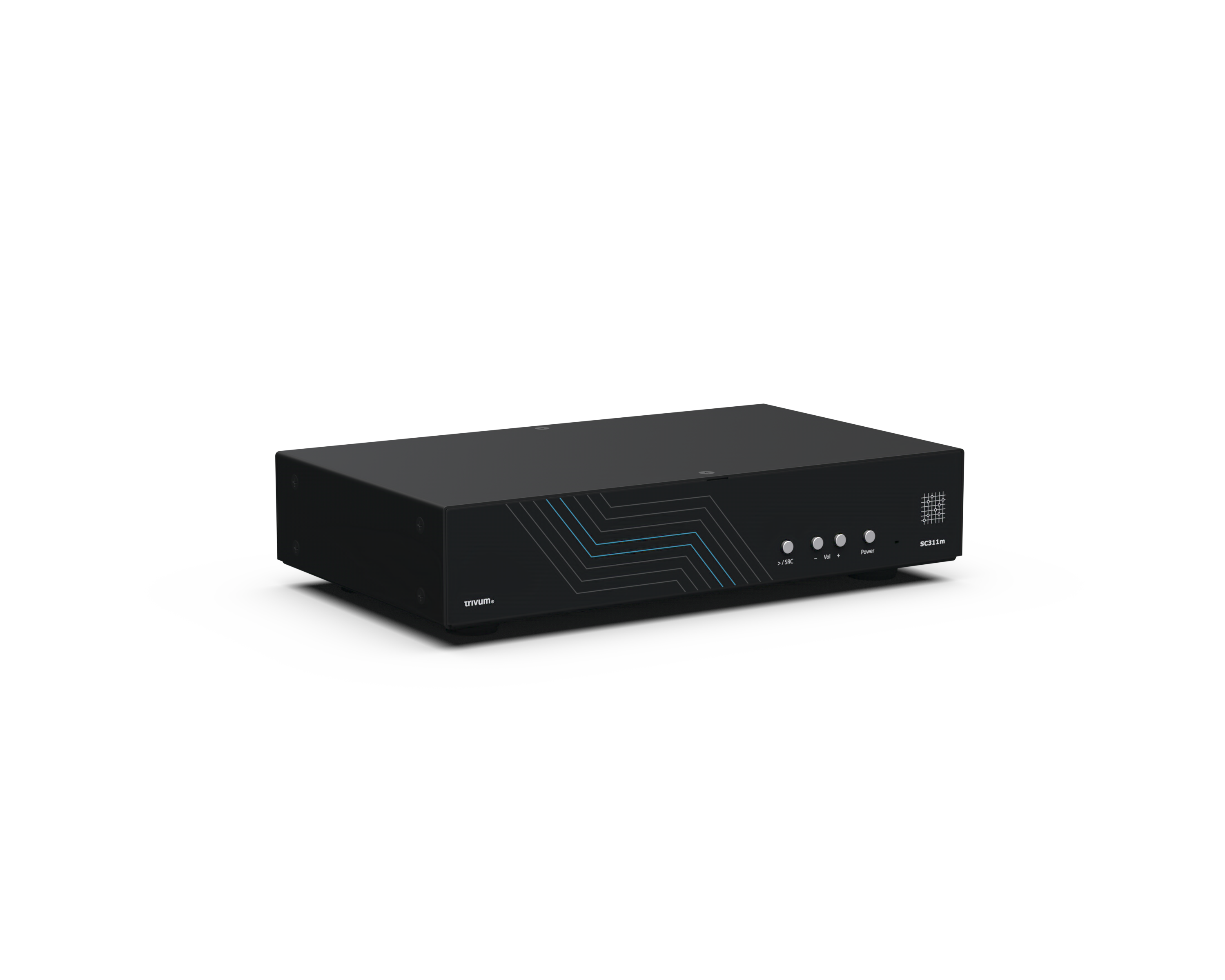

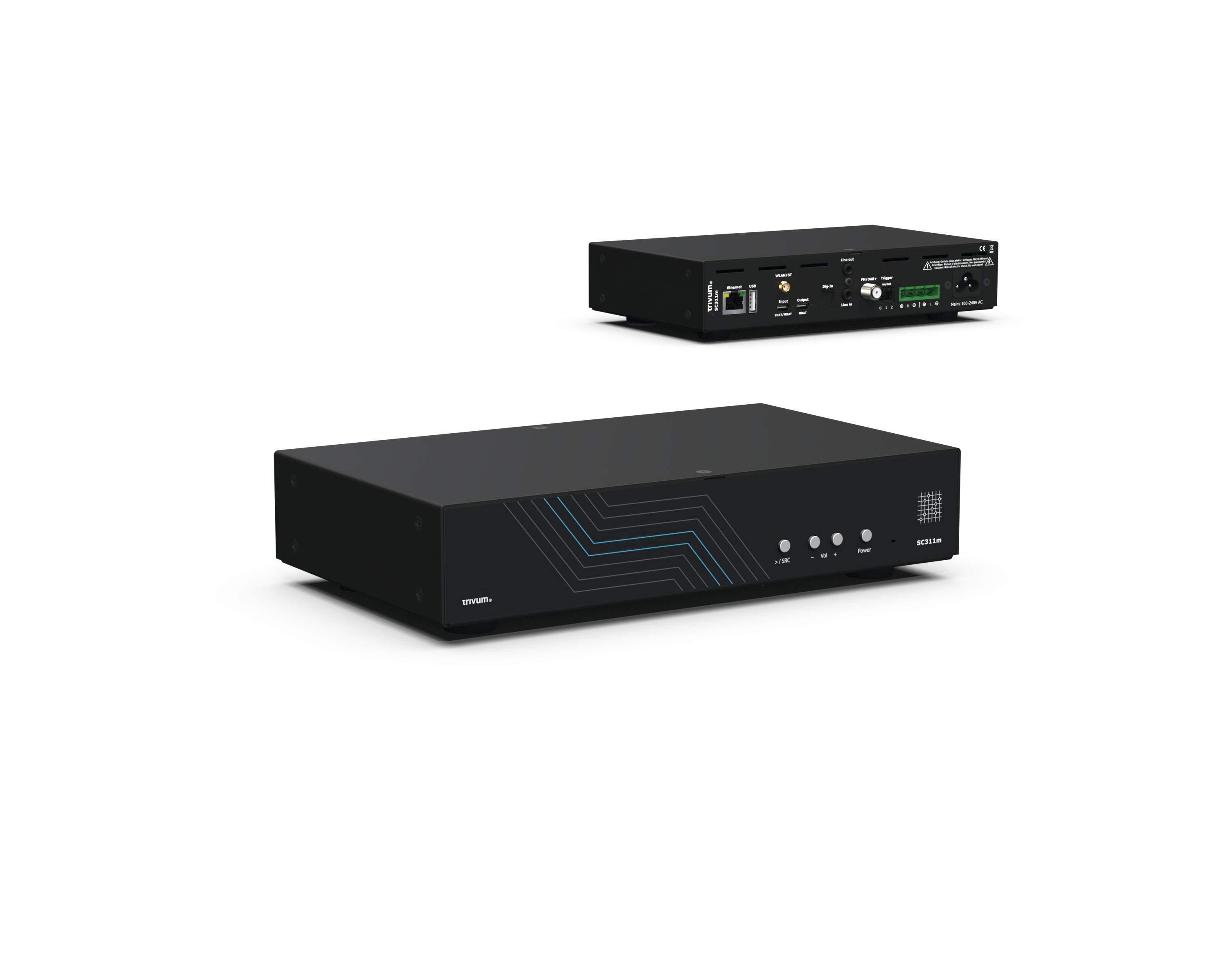

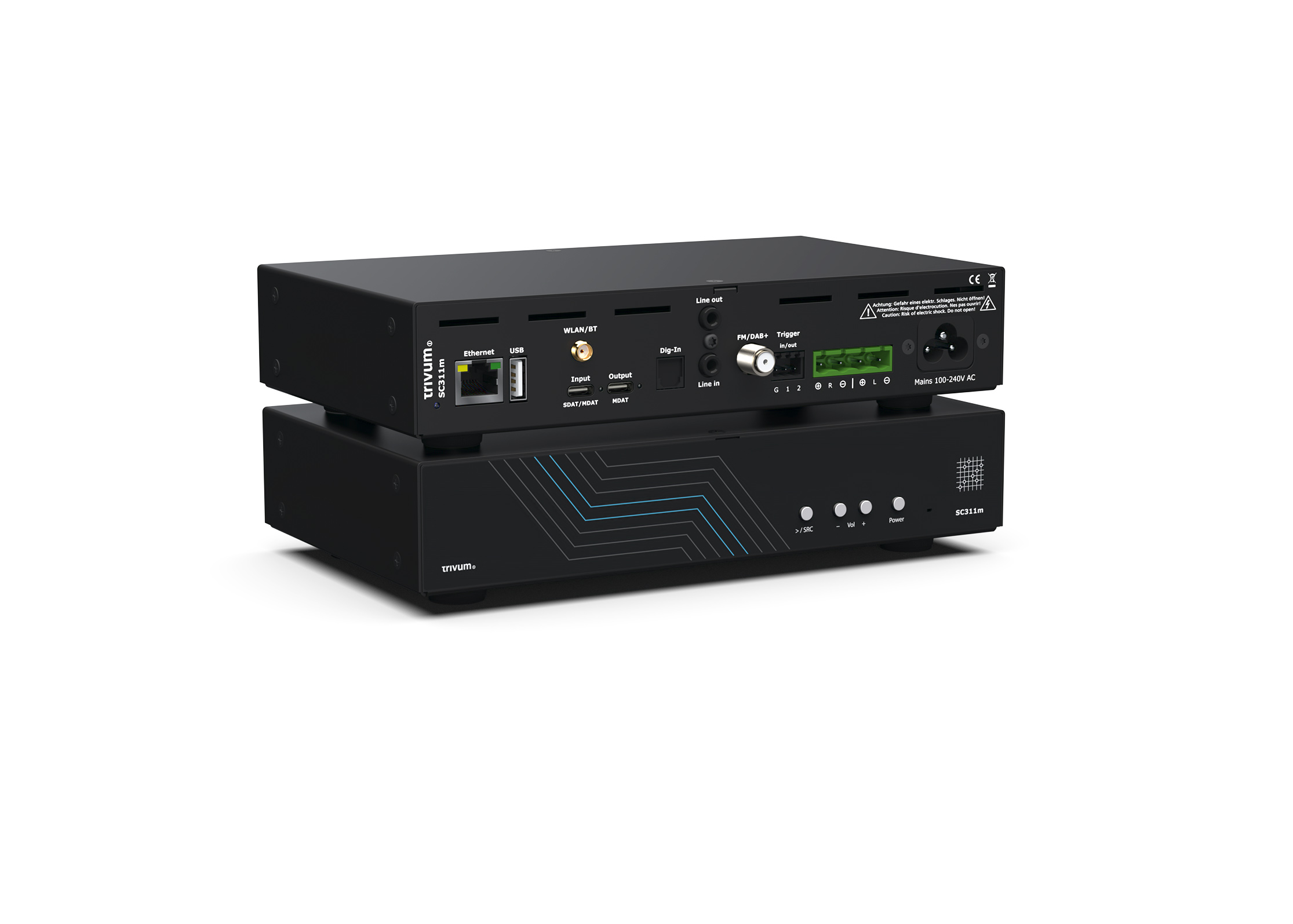

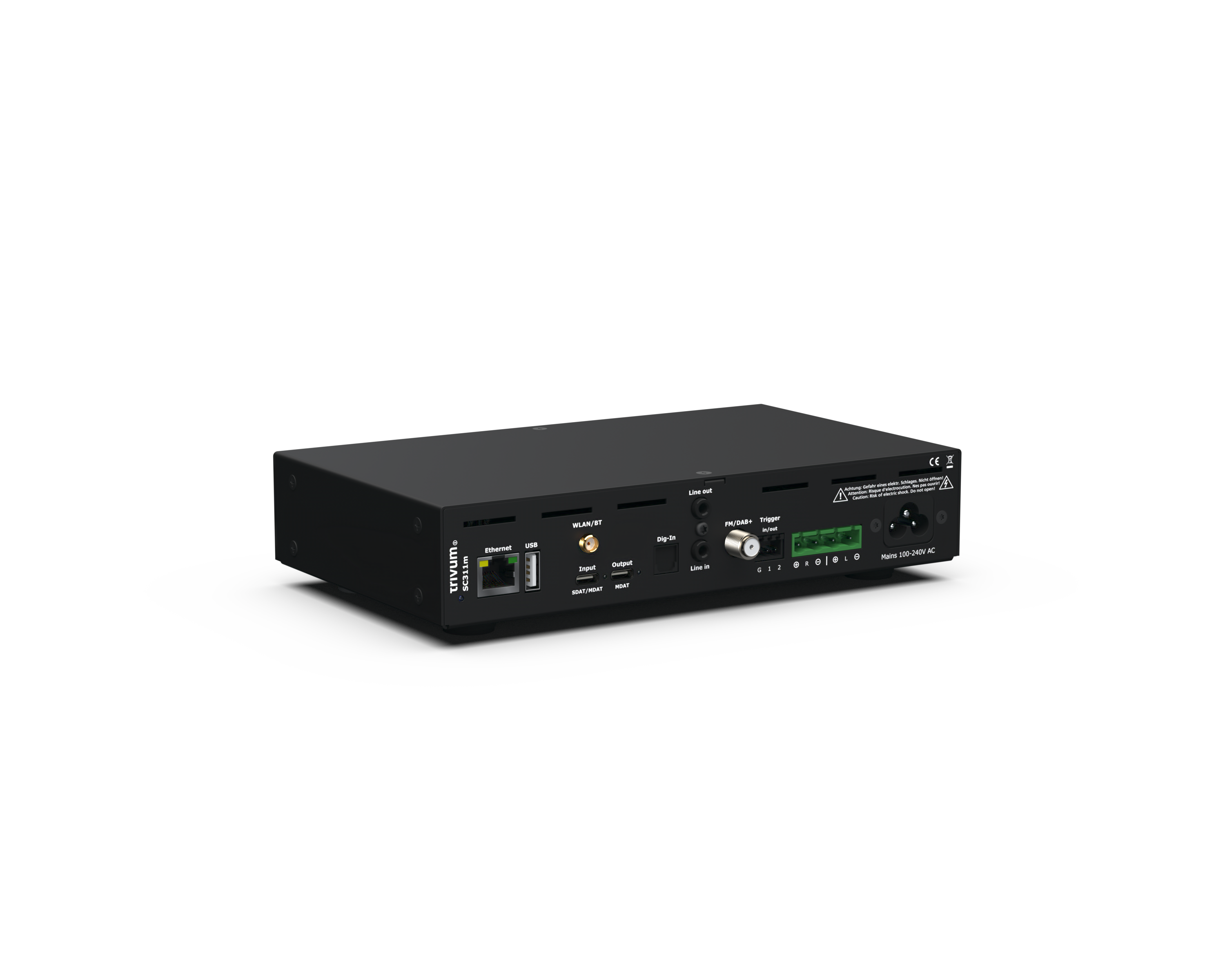

SC311m - 1+ zone Matrix SoundSystem

Flexible sound system for 1 zone. Combinable up to 64 zones. With streaming, DAB+/FM tuner, analog+digital input, Bluetooth, line output, 2x30W amplifier and WLAN.

The compact multiroom sound system

The SC311m is a uniquely compact and powerful multiroom system. As a single device for one room - or in combination with other trivum multiroom systems for up to 64 rooms.

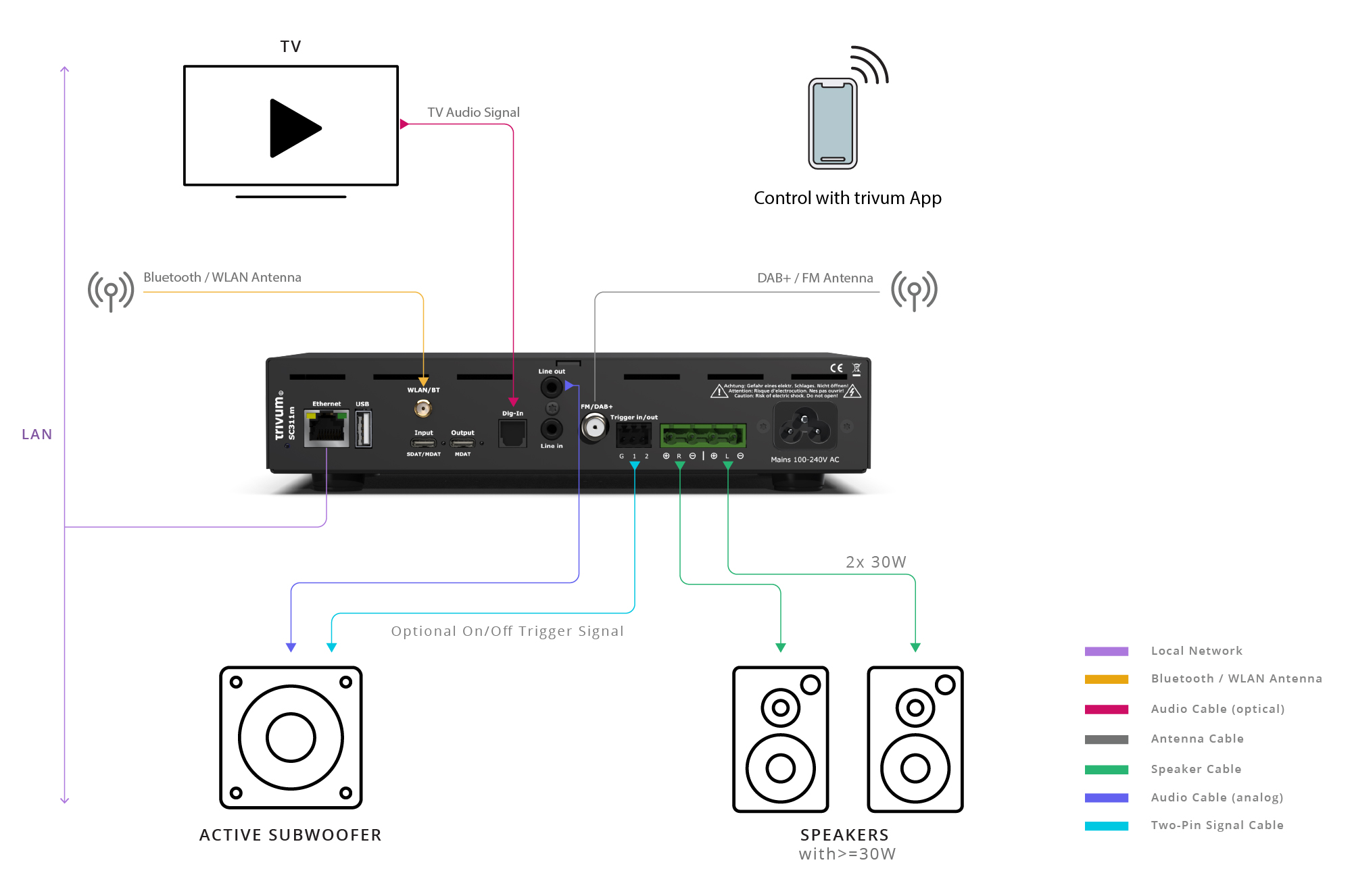

Within the trivum product line, the SC311m has a very special role thanks to its WLAN & Bluetooth Support: it often serves as a device in the room itself - i.e. under the TV or on the shelf. It can be operated directly and its Bluetooth Support makes it particularly flexible.

Don't be fooled by its size: At 2x30 watts, the amplifier is much louder than you might think - and with the many options offered by the trivum t3OS operating system, you are very flexible. We at trivum have more than 20 years of experience in the multiroom sector. That's why you'll find the best KNX support from us - simply built in. And then there are announcements, background music, timers, connected listening zones, API interface and everything is so simple that you can really connect it yourself. Without a specialist - in less than 5 minutes.

Try out the operation and configuration in our online demo system - simply use the online demo below and you're ready to go.

Product features

Product specification

AUX Output:	1x Combi TOSLink digital / 3.5mm Klinke analog
Aux Input:	1x Combi TOSLink digital / 3.5 mm Klinke analog
Bluetooth:	Audio, Ja
DAB+/FM Tuner:	Ja
Gehäuse:	Stahlblech lackiert

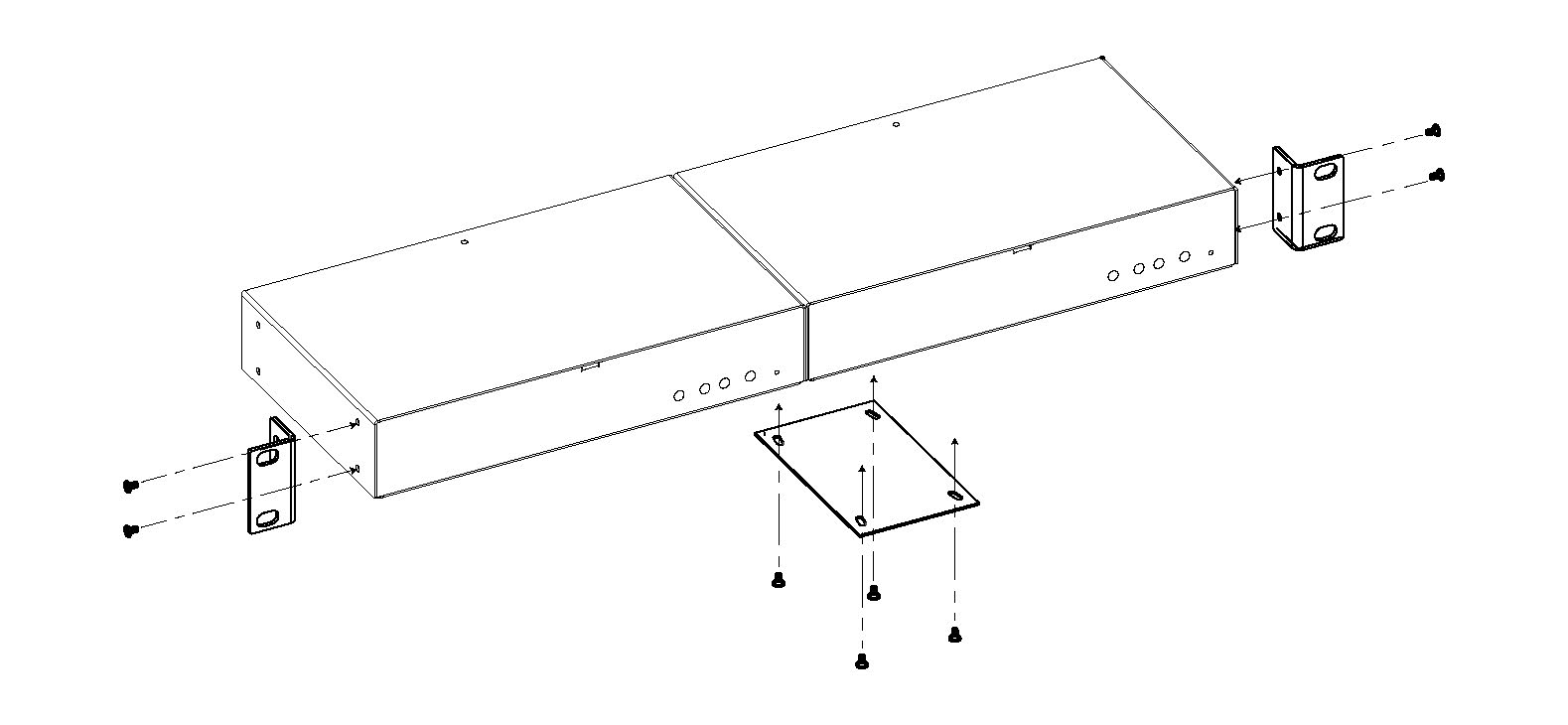

Inhalt:	1 Mounting plate, 8 screws black M3x6
LAN:	Ja
Musikformate:	AAC, ALAC, FLAC, MP3, WMA
Spannungsversorgung:	AC 110V-240V
USB :	Support für FAT32 Stick mit Audio Dateien
Verstärker:	2x 30 W @ 4 Ω
WLAN:	Ja

Product downloads

Data sheet (German)

trivum-data-sheet-SC311m.pdf

Jetzt herunterladen

Data sheet (English)

trivum-datasheet-SC311m.pdf

Jetzt herunterladen

Quick Installation Guide (English)

trivum-qig-SC311m.pdf

Jetzt herunterladen

Product comparison

	Zones	Matrix	Streamer	Tuner	Aux Input	2x30W	Aux Output	WLAN	Bluetooth	Trigger In	Trigger Out
SC311m	1	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️
SC040m	4	✔️	✔️✔️✔️✔️				✔️✔️✔️✔️			✔️	✔️
SC340m	4	✔️	✔️✔️✔️✔️			✔️✔️✔️✔️
SC344m	4	✔️	✔️✔️✔️✔️	✔️✔️✔️✔️	✔️✔️✔️✔️	✔️✔️✔️✔️	✔️✔️✔️✔️			✔️	✔️
RP311v2	1		✔️	✔️	✔️	✔️
RP321	2		✔️✔️	✔️	✔️✔️	✔️✔️
RP341v2	4		✔️✔️✔️✔️	✔️	✔️	✔️✔️✔️✔️

SC311m - 1+ zone Matrix SoundSystem

Product details

SC311m - 1+ zone Matrix SoundSystem

Builtin Streaming Client

Built-in DAB+/FM tuner

Builtin AUX analog/digital input

Builtin Bluetooth

Builtin Matrix

Builtin DSP

Builtin WLAN

Builtin 30W amplifier

Try it out now

Here you can control and configure a real sound system. See what's possible here.

Test setup

Test app

Frequently asked questions about the SC311m

Is WPS supported?

No. To set up WLAN, the device must be connected to the local network via LAN cable. The Wi-Fi settings are then configured via the web configuration using a browser.

Which WLAN standard does the SC311m use?

IEEE 802.11 b/g/n in the 2.4 GHz band. The maximum data rate is 150 MBit/s.

Multiroom +

Distribute music to rooms, control it with an app, group rooms and be woken up by music: That's Multiroom.

For us, Multiroom + means that Multiroom can talk to the house via KNX, that children's rooms can keep to sleeping times and that outdoor areas can never be switched on at night.

Or that the doorbell sound comes through the speakers, that the speakers can be adjusted in detail and adapted to the room and that some things simply run faster and more cleverly.

trivum has been producing multi-room systems for 20 years - and you'll notice that when you use them.

Feature Listen and Transfer

Take music with you from room to room Multiroom systems supply several rooms with music. If you are in the kitchen listening to an interesting podcast, but now go to the study and want to continue listening to it there, this should be easy to do: You want to 'take the music with you'. We call this feature "Listen and Transfer".

€0.00*

Feature Advanced Timers

Automatic rest periods Normal timers switch music on or off at certain times of the day. trivum systems allow 2 such timers per zone. For outdoor areas and children's rooms in particular, however, it may also be necessary to switch off areas or limit the volume at certain times. This is made possible with advanced timers.

€0.00*

Feature Connected Spaces

Easier than grouping There are often connected areas in the home, such as the living room and kitchen, which are not separated by walls. Each area has its own speakers that can be switched on or off separately, but ultimately you always hear the same music. We call this feature 'Connected Spaces'. It is a simplified, permanent connection of rooms as an alternative to grouping.

€0.00*

Feature KNX integration

Music at the touch of a button So cool: A simple KNX switch is all it takes to turn on music in the bathroom in the morning. A motion detector that magically makes birdsong sound in the guest toilet. Or you leave the house and press the "All off" KNX button: not only the lights but also the music stops. This is how home automation works!

€0.00*

Feature Advanced Sound Control

Not all speakers are optimally installed, which is why they often do not sound as good as they could. Thanks to the DSPs (Digital Sound Processor) built into all trivum SoundSystems and thanks to t3OS, each speaker can be individually adjusted (equalized). So that music sounds the way it should.

€0.00*

Feature HomeControl

Controlling lights and blinds with your cell phone trivum offers a user interface with music control, but lighting control via KNX is also possible. Control objects are defined in the trivum Home Control interface and are accessible on separate pages. It is easy to switch between music selection and control of KNX devices without having to use additional software.

€0.00*

Feature Predefined Zonegroups

Saving groupings Normally you create groups interactively in the trivum user interface by selecting the zones and grouping them manually. However, this can be tedious if certain zone combinations are used frequently. Instead, you can define a zone group that contains all the desired zones. This allows the grouping to be performed or canceled with just one touch.

€0.00*

Feature Text to Speach

When making announcements, you often speak the same texts through the microphone. It would be more convenient to have these announcements prepared. TextToSpeech enables the direct dubbing of an entered text as a generated audio file. This can then be used in pagings as required.

€0.00*

Business +

There are few standard solutions for commercial customers. Either you use what every private user uses, but then the solution is not one that supports your specific requirements. Or you install a commercial solution from a specialist and then it's a bigger project.

Our multi-room system wants to be in the middle: it should be simple and affordable, but offer more: Announcements, background music and perhaps you also use the scheduler to control music and volume on a time-controlled basis.

Feature Microphone Mixer

Speaking into a room In commercial environments, e.g. sales rooms, waiting rooms or a hotel lobby, it is often necessary to interrupt the music playback with announcements. The music should be quieter and the microphone level easily adjustable. The trivum Microphone Mixer makes this possible.

€0.00*

Feature Background Music

Everything goes better with music Whether in doctors' surgeries, hotels or salesrooms: you often want to listen to the same music everywhere. Individual areas may want to be switched off or listen to different music, but it should always be easy to switch to general background music.

€0.00*

Feature Protect

Determine who can make changes The bartenders in a nightclub should be able to select music, but not accidentally change the network settings or deactivate music sources - only the club operator can do that. With trivum protect, it is possible to make such assignments, including password protection of the web configuration.

€0.00*

Feature Scheduler

Control the house by calendar With trivum, you can enter actions for specific days in advance and define recurrences. Events are clearly displayed and can be changed directly in the calendar view. Events can be any trivum action, including music and light control or device/sequence control with macros.

€0.00*

Feature macros

Automate something simple. Turn on the light in the living room when you get home. Then in the kitchen. Then start the chill-out playlist at volume 20. If you do this every day, it would be nice to do it all at the touch of a button. And you can do this by setting up macros in trivum that perform several steps at once.

€0.00*

Feature Paging

Announcements and bells The option of interrupting ongoing music in rooms with announcements is mostly used in commercial environments, e.g. in doctors' surgeries or sales rooms. Announcements can be started with KNX telegrams, the planner or the trivum actions, and can therefore be used very flexibly.

€0.00*

Installer +

Our multi-room systems are often installed by specialist companies for larger projects. The extended analysis functions, remote support functions and the fast and direct support from trivum is a real plus point when it comes to time and money.

We work closely with our partners, speak their language and support them with the built-in tools when it comes to the network and non-everyday issues.

Feature TunnelServer

Keeping an eye on installations Active and experienced partners have the option of using a trivum Tunnel Server. This tool enables them to monitor and remotely support their installed trivum systems. Find out more about the "Remote Support" feature, which forms a unit together with the trivum Tunnel Server.

€0.00*

Feature Remote Support

Fast and competent help With the activated remote support function of a trivum system, our Support team can access the system directly, read out errors and assist with configuration. This means that our partners often don't have to be on site for questions and problems. Most issues can be resolved quickly and easily by trivum Remote Support.

€0.00*

Feature trivum API

trivum sound systems for developers If you use a touch panel for home automation, trivum can usually be integrated without any problems. If the trivum WebUI cannot be integrated directly, you can use the trivum API to control functions via HTTP, e.g. "Play favorite no. 1", zone on/off or volume control. However, the trivum API provides much more.

€0.00*

Feature URC Integration

trivum URC drivers URC is an American manufacturer of automation solutions that integrate devices from various brands. Trivum music in the living room can be started using the URC remote control. The URC driver adds the trivum system to the menu to control the music status in a zone. You can find more information about URC on the URC homepage. The trivum RTI interface is an alternative interface for automation solutions based on RTI. You can find out more about RTI and the trivum RTI interface here. The trivum Control4 Interface is an alternative interface for automation solutions based on Control4. You can find out more about Control4 and the trivum Control4 interface here.

€0.00*

Feature Control4 Integration

trivum Control4 driver Control4 is an American manufacturer of automation solutions that integrates a variety of devices from different manufacturers. With the Control4 driver, trivum is integrated into the NEEO remote control from Control4, for example, so that the music status can be controlled and, for example, your favorite radio station can be played. Further information about Control4 can be found on the Control4 homepage. The trivum RTI interface is an alternative interface for automation solutions based on RTI. You can find out more about RTI and the trivum RTI interface here. The trivum URC interface is an alternative interface for automation solutions based on URC. You can find out more about URC and the trivum URC interface here.

€0.00*

Feature RTI Integration

RTI Integration RTI Corp is an American manufacturer of automation solutions. RTI manufactures remote controls, controllers, touch panels and audio products. RTI's products are used for media control and also for more complex control systems. For example, RTI can be used to control a surround system together with a TV/projector and possibly also lifts and operate them with a single remote control. Further information on RTI can be found on the RTI homepage. The trivum Control4 interface is an alternative interface for automation solutions based on Control4. You can find out more about Control4 and the trivum Control4 interface here. The trivum URC interface is an alternative interface for automation solutions based on URC. You can find out more about URC and the trivum URC interface here.

€0.00*

Feature Node-RED integration

trivum connects to the IOT world Node-RED from IBM is a graphical development tool for IoT use cases. With the modular principle, function blocks can be easily connected with each other. The trivum Node-RED interface enables the integration of trivum multiroom systems into automations based on Node-RED.Further information on Node-RED can be found on Wikipedia or at Nodered.org.

€0.00*

Feature Inspect

Quick insight into the system trivum multiroom systems offer a wide range of customization options to meet the needs of users and can be seamlessly integrated into existing building technology or automation systems. In some cases, this requires a deeper insight into the system. With Inspect, integrators can access log files and system information and thus solve many problems independently without having to contact technical support immediately.

€0.00*

Compare alternatives

_cross_

Tip

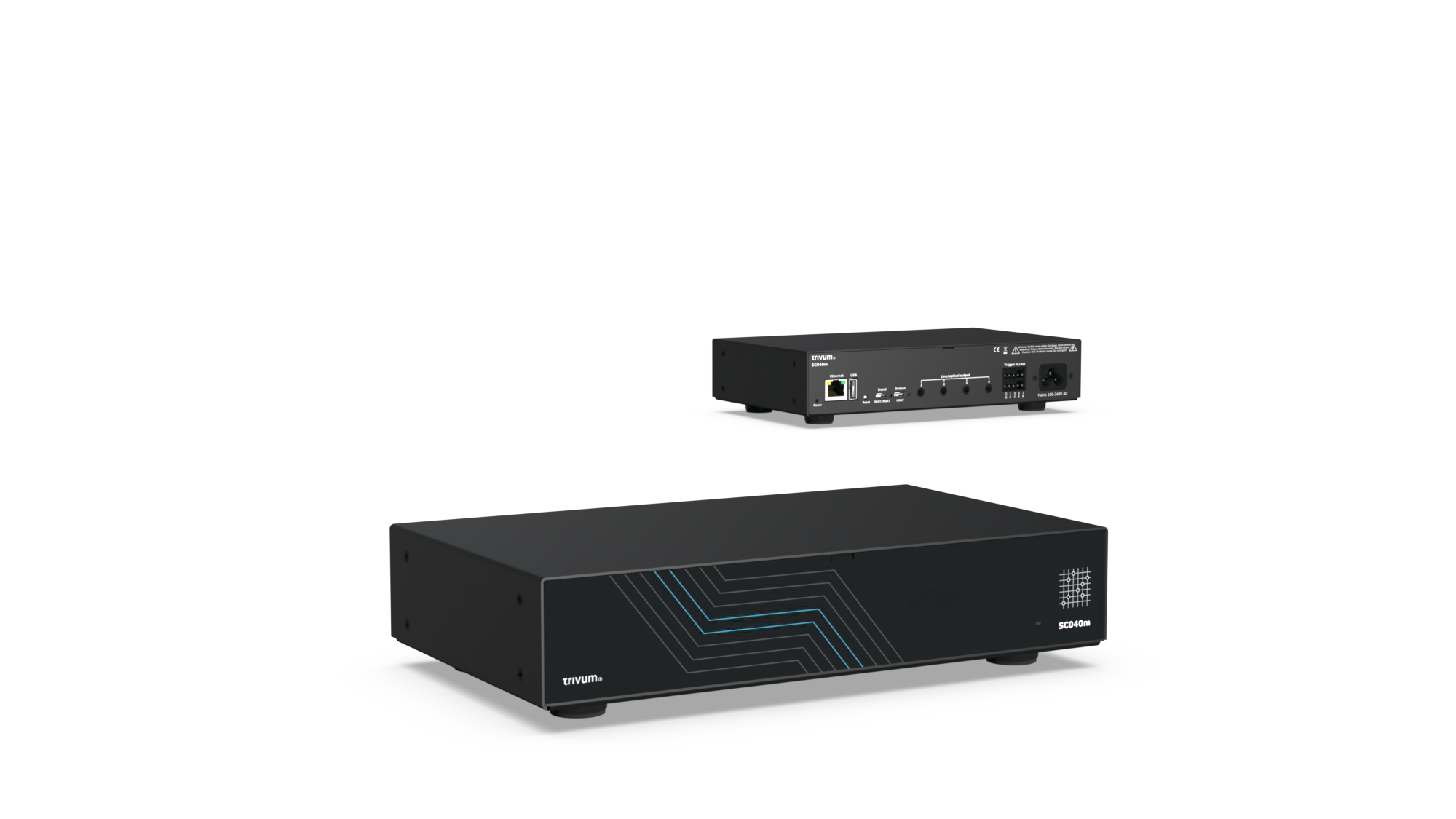

SC040m - 4+ Zone Matrix SoundSystem

€1,690.00*

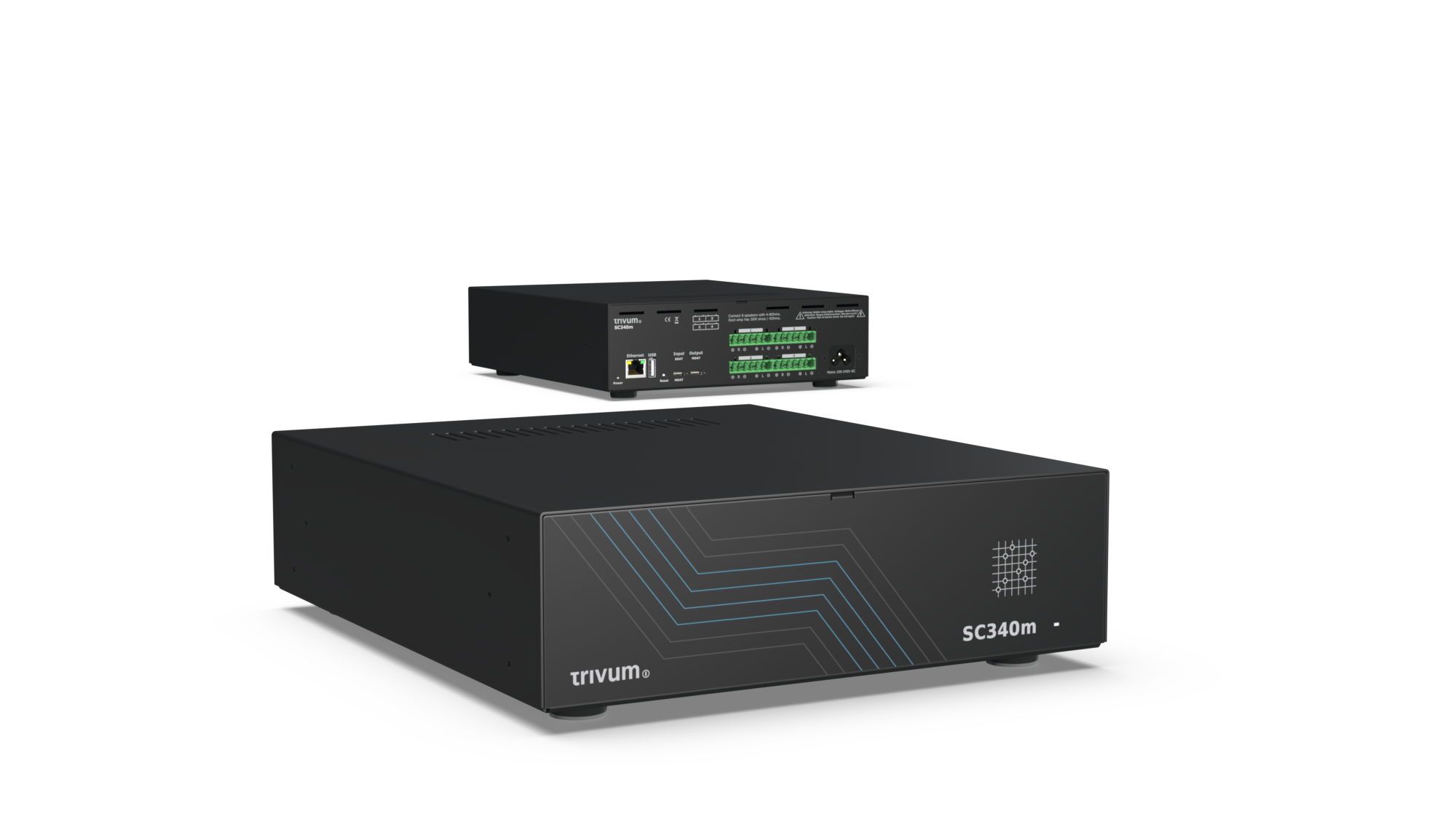

SC340m - 4+ zone Matrix SoundSystem

€1,990.00*

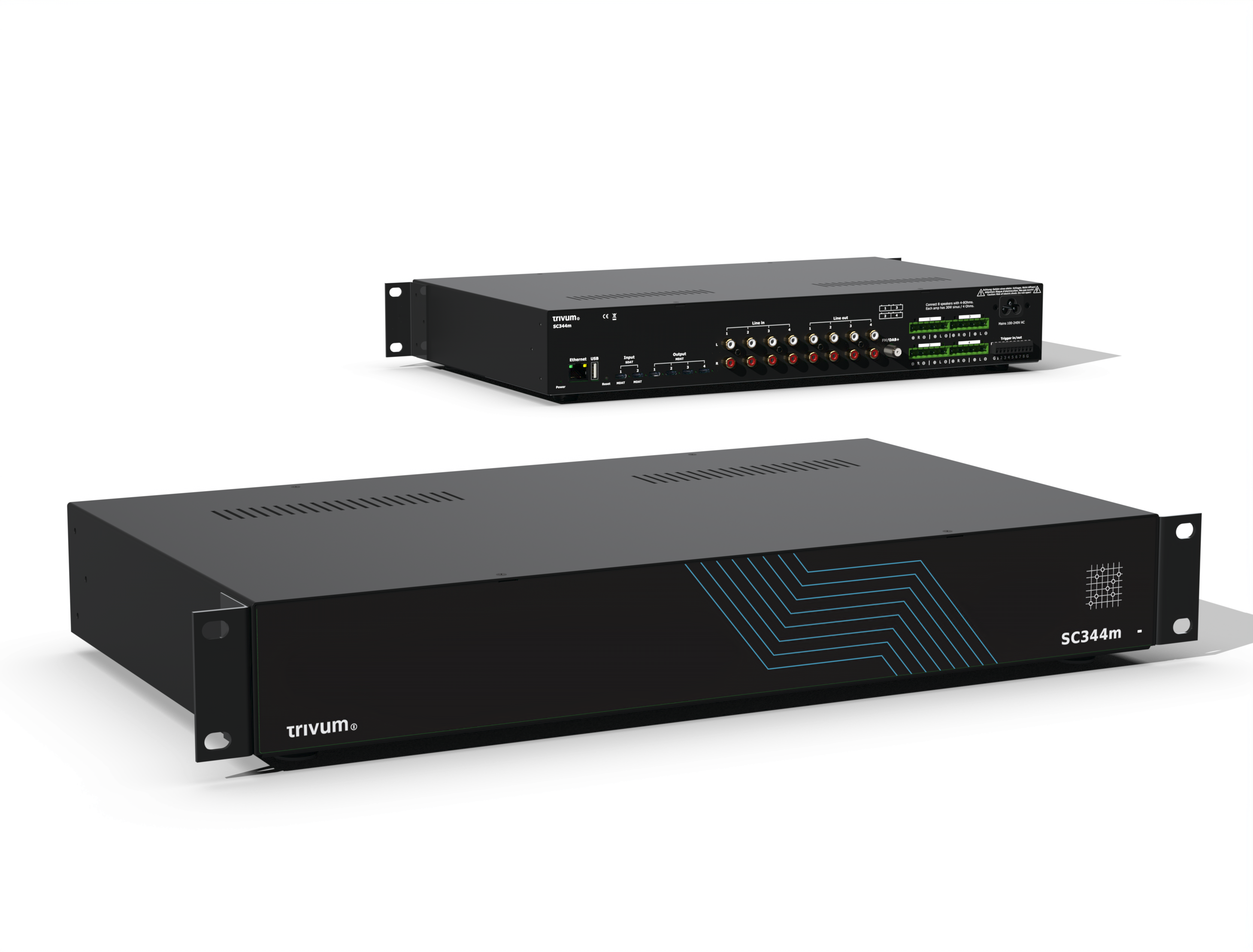

SC344m - 4+ zone Matrix SoundSystem
